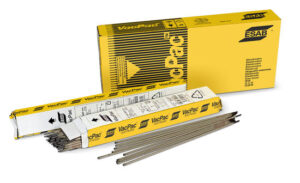

ESAB 36H (SPL)
Trusted by businesses across Kolkata and beyond
ESAB 36H (SPL) SUPPLIER
ESAB 36H (Spl) is a basic coated low hydrogen iron powder electrode for low temperature applications. It is an all position electrode for welding medium tensile and fine grained carbon steels.The electrode exhibits very good mechanical properties after extended post weld heat treatment.
Features & Benefits
Welding Invented
When our founder Oscar Kjellberg developed the world’s first coated welding electrode in 1904, he launched a company whose innovation and uncompromising standards have helped create the history of welding itself. This legacy continues in the quality, performance, and continuous development of the mild steel welding electrodes we make today.
Consistent Performance and Quality, Every Time
Performance is still what sets ESAB covered electrodes apart. No matter the job at hand, with ESAB mild steel and low hydrogen electrodes you are assured of good penetration, consistent mechanical properties, and X-ray quality welds from batch to batch.
Setting the Standard in Covered Electrodes
ESAB covered electrodes exceed industry criteria for low moisture pick up (moisture pick up 0 to 1000°C < 0.4 after 9 hours at 274°C, 80% HR). You can trust ESAB low hydrogen and mild steel electrodes to deliver tough mechanical properties in high or low temperature environments, high humidity worksites, or the most challenging positional welding projects. Plus, their easy-to-use nature make them a simple choice for welders of all skill levels.
Specifications
| Specifications | |
|---|---|
| Classifications | SFA/AWS A5.1 : E7018-1 IS 814 : EB5626H3JX |
| Approvals | IBR : E7018-1 LR : 4Y40 H15 PDIL : E7018-1 |
| Welding Current | AC, DC+ |
| Diffusible Hydrogen | < 5.0 ml/100g |
| Alloy Type | C-Mn |
| Coating Type | Basic |
| Min AC OCV | 70 |
| Typical Tensile Properties | |||
|---|---|---|---|
| Condition | Yield Strength | Tensile Strength | Elongation |
| AWS | |||
| As Welded | 500 MPa | 570 MPa | 32 % |
| Typical Charpy V-Notch Properties | ||
|---|---|---|
| Condition | Testing Temperature | Impact Value |
| AWS | ||
| As Welded | -30 °C | 135 J |
| PWHT 5 hour(s) 620 °C | -30 °C | 150 J |
| PWHT 15 hour(s) 620 °C | -30 °C | 160 J |
| As Welded | -40 °C | 90 J |
| As Welded | -46 °C | 75 J |
| PWHT 5 hour(s) 620 °C | -46 °C | 90 J |
| PWHT 15 hour(s) 620 °C | -46 °C | 100 J |
| Typical Weld Metal Analysis % | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| C | Mn | Si | S | P | Ni | Cr | Mo | V | Mn+Ni+Cr+Mo+V |
| 0.07 | 1.30 | 0.30 | 0.020 | 0.025 | 0.03 | 0.05 | 0.08 | 0.005 | 1.45 |
| Deposition Data | |
|---|---|
| Diameter | Current |
| 2.5 x 350 mm | 60-100 A |
| 3.15 x 450 mm | 80-140 A |
| 4.0 x 450 mm | 100-190 A |
| 5.0 x 450 mm | 180-260 A |
Ordering
| Description | Product Number |
|---|---|
| ESAB 36H (SPL) 5.00x450mm, VP | 4870504VV0 |
| ESAB 36H (SPL) 3.15x450mm, VP | 4870314VV0 |
| ESAB 36H (SPL) 2.50x350mm, VP | 4870253VV0 |
| ESAB 36H (SPL) 4.00x450mm, VP | 4870404VV0 |
| ESAB 36H (SPL) 5.00x450mm | 4870504V80 |
| ESAB 36H (SPL) 3.15x450mm | 4870314V80 |
| ESAB 36H (SPL) 4.00x450mm | 4870404V80 |
| ESAB 36H (SPL) 2.50x350mm | 4870253V80 |
| ESAB 36H (SPL) 2.50x350mm | 4870253V0R |
| ESAB 36H (SPL) 5.00x450mm | 4870504V0R |
| ESAB 36H (SPL) 4.00x450mm | 4870404V0R |
| ESAB 36H (SPL) 3.15x450mm | 4870314V0R |
