OK ARISTOROD 12.50 SUPPLIER

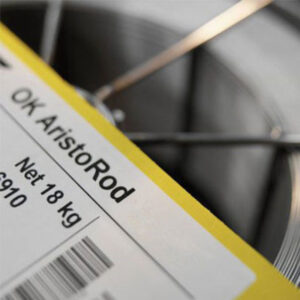

OK Aristorod 12.50 is a non copper coated Mn-Si-alloyed G3Si1/ER70S-6 solid wire for the GMAW of non-alloyed steels, as used in general construction, automotive components, pressure vessel fabrication and shipbuilding. OK Aristorod 12.50 is treated with ESAB’s unique Advanced Surface Characteristics (ASC) technology, taking MAG welding operations to new levels of performance and all-round efficiency, especially in robotic and mechanised welding. Characteristic features include excellent start properties; trouble-free feeding at high wire speeds and lengthy feed distances; a very stable arc at high welding currents; extremely low levels of spatter; low fume emission; reduced contact tip wear and improved protection against corrosion of the wire.

Features & Benefits

MIG Wires with Optimized Chemistry

Optimized chemistry for less post-weld rework make ESAB mild steel and low alloy MIG wires a good choice for overall cost of ownership.

Choose from a Family of Drum Sizes

Marathon Pac is ESAB’s unique cardboard bulk drum system, available for a wide range of MIG wire grades. A complete family of drum sizes offers a solution for any kind of fabrication – from small workshops to large-scale manufacturing. Our largest drum is designed with reinforced corners and lifting straps for the most durable bulk wire drum package anywhere.

Excellent Feeding Performance

From mild steel to low alloy wires, ESAB MIG wires provide excellent feeding performance for high speed welding and long feeding distances.

Specifications

Specifications
Classifications	EN ISO 14341-A : G 38 3 C1 3Si1 EN ISO 14341-A : G 42 4 M20 3Si1 EN ISO 14341-A : G 42 4 M21 3Si1 EN ISO 14341-A : G 3Si1 SFA/AWS A5.18 : ER70S-6 CSA W48 : B-G 49A 3 C1 S6 JIS Z 3312 : YGW 12 (C1)
Approvals	ABS : 3Y SA BV : SA3YM CE : EN 13479 DB : 42.039.29 DNV-GL : III YMS LR : 3YS H15 PRS : 3YS RS : 3Y40MS VdTÜV : 10052 CWB : B-G 49A 3 C1 S6 (B-G 49A 3 C G6) JIS : YGW12 (C1) NAKS/HAKC : 1.2-1.6 mm RINA : 3Y S

Approvals are based on factory location. Please contact ESAB for more information.

Alloy Type

Mn-Si alloyed

Typical Tensile Properties
Condition	Yield Strength	Tensile Strength	Elongation
EN 80Ar/20CO2 (M21)
As Welded	470 MPa	560 MPa	26 %
EN CO2 (C1)
As Welded	440 MPa	540 MPa	25 %
EN 80Ar/20CO2 (M21)
Stress Relieved	370 MPa	495 MPa	28 %

Typical Charpy V-Notch Properties
Condition	Testing Temperature	Impact Value
EN 80Ar/20CO2 (M21)
As Welded	-30 °C	100 J
As Welded	-40 °C	90 J
EN CO2 (C1)
As Welded	-30 °C	75 J
EN 80Ar/20CO2 (M21)
As Welded	-20 °C	120 J
Stress Relieved	-20 °C	90 J
As Welded	-50 °C	70 J

Typical Wire Composition %
C	Mn	Si
0.08	1.46	0.85

Deposition Data
Diameter	Current	Voltage
0.8 mm	60-200 A	18-24 V
0.9 mm	70-250 A	18-26 V
1.0 mm	80-300 A	18-32 V
1.2 mm	120-380 A	18-35 V
1.4 mm	150-420 A	22-36 V
1.6 mm	225-550 A	28-38 V
2.0 mm	300-650 A	32-44 V

Ordering

Description	Product Number
OK AristoRod 12.50 0.8mm 15kg	1A5008670H
OK AristoRod 12.50 0.8mm 15kg	1A50086900
OK AristoRod 12.50 0.8mm 200kg	1A50089300
OK AristoRod 12.50 0.9mm 20kg	1A5009542H
OK AristoRod 12.50 0.9mm 18kg	1A5009671H
OK AristoRod 12.50 0.9mm 18kg	1A50096910
OK AristoRod 12.50 0.9mm 250kg	1A50099320
OK AristoRod 12.50 0.9mm 250kg	1A5009932H
OK AristoRod 12.50 1.0mm 5kg	1A50104600
OK AristoRod 12.50 1.0mm 20kg	1A5010542H
OK AristoRod 12.50 1.0mm 18kg	1A5010671H
