OK TIGROD S2
Trusted by businesses across Kolkata and beyond
OK TIGROD S2 SUPPLIER

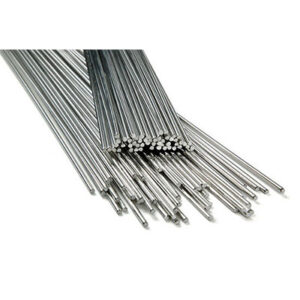

OK TIGROD S2 is a copper coated Mn-Si alloyed solid rod for TIG welding of non-alloyed steels, used in general construction, pressure vessel fabrication and shipbuilding. It is especially suitable for welding of light gauge non-alloyed steels in all positions and for a variety of applications, including root run for pipes & tubes.
Specifications
| Specifications | |
|---|---|
| Classifications | EN ISO 636-A : W 46 3 W2Ti EN ISO 636-A : W2Ti SFA/AWS A5.18 : ER70S-2 |
| Approvals | CE : EN 13479 IBR : ER70S-2 PDIL : ER70S-2 |
| Alloy Type | C-Mn |
| Shielding Gas | I1 (EN ISO 14175) |
| Typical Tensile Properties | ||||
|---|---|---|---|---|
| Condition | Conditional Statement | Yield Strength | Tensile Strength | Elongation |
| As Welded | As welded | 460 MPa | 550 MPa | 28 % |
| Typical Charpy V-Notch Properties | ||
|---|---|---|
| Condition | Testing Temperature | Impact Value |
| As Welded | -30 °C | 120 J |
| Typical Wire Composition % | ||
|---|---|---|
| C | Mn | Si |
| 0.05 | 1.10 | 0.55 |
Ordering
| Description | Product number |
|---|---|
| OK TIGROD S2 2.00MM 5KG | 1L6620R150 |
| OK TIGROD S2 1.60MM 5KG | 1L6616R150 |
| OK TIGROD S2 2.50MM 5KG | 1L6625R150 |
| OK TIGROD S2 3.15MM 5KG | 1L6631R150 |
