ESAB 120 is a Cr-Ni-Mo alloyed low hydrogen electrode, for welding ultra high strength low alloy steels. The electrode is designed to give a tough weld metal avoiding risk of temper brittleness. The operational characteristics are excellent in all positions.
Features & Benefits
Welding Invented
When our founder Oscar Kjellberg developed the world’s first coated welding electrode in 1904, he launched a company whose innovation and uncompromising standards have helped create the history of welding itself. This legacy continues in the quality, performance, and continuous development of the covered electrodes we make today.

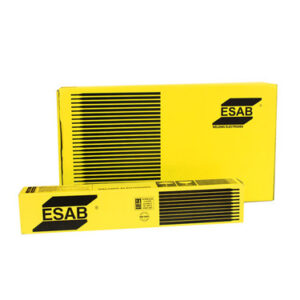

Factory Fresh Low Alloy Electrodes, Straight from the Pack
ESAB’s VacPac™ packaging is hermetically sealed and vacuum-packed to protect low alloy electrodes from moisture pick up and re-absorption from the air. Electrodes can be used straight from the package without the need to re-bake them or you can store them temporarily in holding ovens and quivers. Get fresh, dry low alloy covered electrodes every time with ESAB.
Specifications
| Specifications | |
|---|---|
| Classifications | SFA/AWS A5.5 : E12018M |
| Welding Current | AC, DC+ |
| Diffusible Hydrogen | < 5 ml/100g |
| Alloy Type | Cr-Ni-Mo alloyed |
| Coating Type | Basic |
| Min AC OCV | 70 |
| Typical Tensile Properties | |||
|---|---|---|---|
| Condition | Yield Strength | Tensile Strength | Elongation |
| AWS | |||
| As Welded | 790 MPa | 860 MPa | 20 % |
| Typical Charpy V-Notch Properties | ||
|---|---|---|
| Condition | Testing Temperature | Impact Value |
| AWS | ||
| As Welded | -50 °C | 70 J |
| Typical Weld Metal Analysis % | |||||
|---|---|---|---|---|---|
| C | Mn | Si | Ni | Cr | Mo |
| 0.06 | 1.60 | 0.25 | 2.35 | 0.90 | 0.40 |
| Deposition Data | |
|---|---|
| Diameter | Current |
| 3.15 x 450 mm | 90-140 A |
| 4.0 x 450 mm | 140-190 A |
| 5.0 x 450 mm | 190-240 A |
Ordering
| Description | Product Number |
|---|---|
| ESAB 120 3.15x450mm | 7814314V80 |
| ESAB 120 5.00x450mm | 7814504V80 |
| ESAB 120 4.00x450mm | 7814404V80 |
| ESAB 120 4.00x450mm, VP | 7814404VV0 |
| ESAB 120 3.15x450mm, VP | 7814314VV0 |
| ESAB 120 5.00x450mm, VP | 7814504VV0 |
